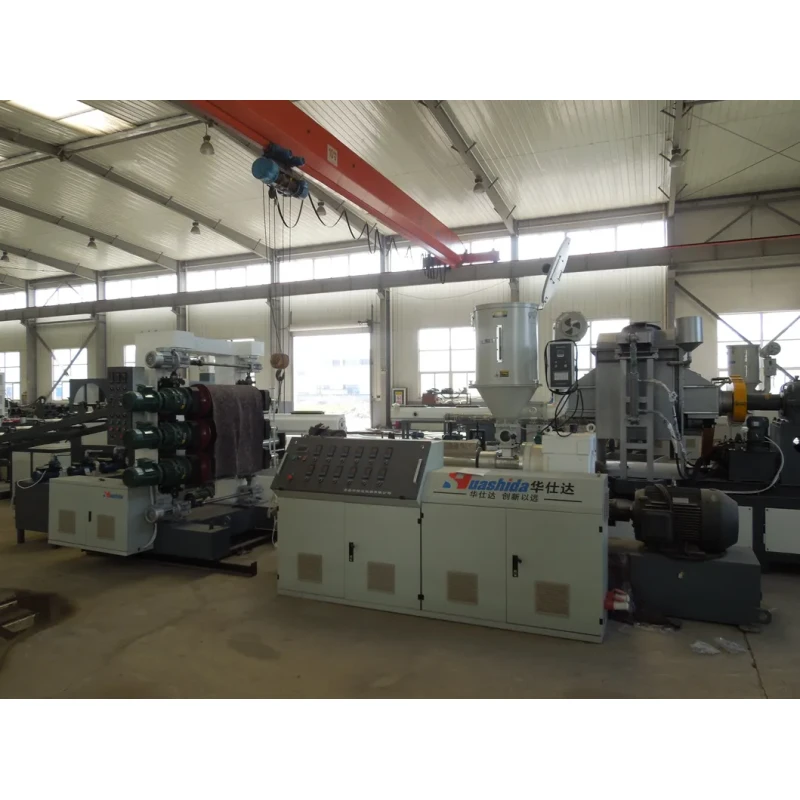

PE/PP/PVC Automatic Plastic Sheet Extruder Making Machine
Product Overview
Qingdao Huashida PE/PP/PVC Automatic Plastic Sheet Extruder Making Machine - Compact Profile
Purpose-built, fully-automatic extrusion line that converts PE (LDPE/LLDPE/HDPE), PP or rigid/flexible PVC pellets or recycled flake into high-quality flat sheets from 0.1 mm up to 30 mm thick and up to 3,000 mm wide.
Technical Specifications
| Model No. |
HSD |
| Type |
Sheet Extruder |
| Plastic Processed |
PE |
| Product Type |
Extrusion Molding Machine |
| Feeding Mode |
One Feed |
| Assembly Structure |
Separate Type Extruder |
| Screw |
Single-Screw |
| Engagement System |
Full Intermeshing |
| Screw Channel Structure |
Deep Screw |
| Exhaust |
Don't Exhaust |
| Automation |
Automatic |
| Computerized |
Computerized |
| Product Width |
500mm - 1600mm |
| Product Thickness |
0.5mm - 6.0mm |
| Specification |
ISO9001:2008 |
| Trademark |
HSD |
| Origin |
Qingdao |
| Production Capacity |
50 Units/Year |
Packaging & Delivery
| Package Size |
1000.00cm * 220.00cm * 180.00cm |
| Package Gross Weight |
1000.000kg |
Performance Characteristics
- Single- or multi-layer co-extrusion layout with fast-change feedblock
- 33-36 L/D high-efficiency barrier screw and melt pump for ±2% thickness tolerance
- Vertical three-roll calender with independent servo-motor drive; mirror, matte or embossed finish
- On-line edge trim recycling; corona/flame treatment optional
- SI PLC + 15" HMI, remote diagnostic & recipe memory
- Quick-switch winding (turret) or cut-to-length stacker for 0.3-25 m/min line speed
- Energy-saving barrel heaters & vacuum loader reduce power ~12%
- Same die set can produce base films for heat-shrink and electro-fusion sleeves
- Modular design: future upgrade to 5-layer EVOH barrier sheet without major retro-fit
Output: 250-800 kg/h (material dependent)
Installed power: 220-450 kW
Footprint: ≈ 18 m * 4 m * 3.5 m (1,500 mm model)
Engineered for Excellence, Recognized Worldwide
Qingdao Huashida delivers cutting-edge, integrated extrusion solutions trusted by manufacturers globally. Our advanced lines excel in producing both premium PP/PE Plastic Sheets/Boards and high-performance Fiber-Reinforced Radiation Cross-Linked Polyethylene (PE) Heat-Shrinkable Sleeves (3-Layer Structure). Designed for maximum output, stringent quality, and operational reliability, Huashida lines set the industry benchmark.
Plastic Sheet/Board Extrusion Line
Materials: PP, PE (HDPE, MDPE, LDPE), and blends
Applications: Base substrate layer for multi-layer heat-shrinkable sleeves, industrial sheets, construction panels, packaging
Key Capabilities
- Width Range: 500mm - 1600mm (Standard), up to 2500mm (Custom)
- Thickness Range: 0.5mm - 6.0mm (Precision control ±0.05mm)
- Output: Up to 1000 kg/h (Depending on material & thickness)
- Core Tech: High-torque extruders, gear pumps for pressure stability, automatic die lip adjustment, precision calendaring/cooling, online thickness gauging (X-ray/IR), automatic winders/slitters
Fiber-Reinforced Radiation Cross-Linked PE Heat-Shrinkable Sleeve Line
Structure (3-Layer Coextrusion):
- Layer 1 (Outer): Radiation Cross-linkable PE (Protective, shrink layer)
- Layer 2 (Middle): Fiber-Reinforced Cross-linkable PE (Structural reinforcement)
- Layer 3 (Inner): Thermoplastic Adhesive (Sealing layer - EVA, Butyl, etc.)
Key Specifications & Capabilities
- Sleeve Width: 150mm - 1500mm (Post-shrink, customizable)
- Thickness Range: 1.2mm - 4.5mm (Total, layer-specific control)
- Shrink Ratio: ≥ 3:1 (Standard), customizable ratios available
- Reinforcement: High-strength polyester or glass fiber mesh/webbing (Integrated inline)
- Radiation Cross-linking: Integrated inline Electron Beam (E-beam) irradiation system (Dose range: 80-200 kGy, precise control)
- Output: High-speed production matching sheet line capacity
- Core Tech: Triple-layer coextrusion block/feedblock, precision melt laminating for reinforcement, controlled E-beam irradiation chamber, advanced corona treatment (optional for printing), precision cooling, tension control, servo-driven cutting/winding
Why Choose Huashida for Heat-Shrinkable Sleeve Production?
Unmatched Production Efficiency: Integrated design from sheet extrusion to finished sleeve enables continuous, high-volume output. Optimized coextrusion & inline radiation cross-linking significantly reduces production steps and cycle time. Robust automation ensures high line speeds and minimal downtime.
Guaranteed International Quality Standards: Produces sleeves meeting or exceeding ISO 21809-1, EN 12068, CAN/Z245.21, DIN 30672, AS/NZS 4858, and GOST requirements. Precision layer control ensures consistent adhesive coverage, uniform reinforcement distribution, and reliable cross-linking density.
Superior Product Performance: Excellent shrinkability & conformity ensures tight seal on complex geometries. High mechanical strength & impact resistance withstands handling and backfill. Outstanding chemical & environmental stress crack resistance (ESCR) for long-term pipeline integrity. Strong, durable adhesive bond guarantees waterproof seal.
Global Recognition & Trust: Huashida lines are operational in over 30 countries across five continents. Widely adopted by leading pipeline coating and composite material manufacturers. Recognized for reliability, low operating costs, and exceptional product consistency.
Advanced Control & Customization: Centralized PLC/HMI system with SCADA integration for full process monitoring and data logging. Lines can be customized for specific sleeve dimensions, materials, reinforcement types, and output targets. Options include inline printing, automated packaging, and enhanced QA systems.
From raw sheet to radiation-cross-linked, fiber-reinforced sleeve - we deliver the complete, efficient, world-class production solution.
After Sales Service
- Turn-key package: workshop layout, tool set, start-up resin, operator training
- Lines running in 55 countries; English, Russian, Spanish, Arabic tech support
- Spare-parts stocked overseas for 48h delivery
