Pre-insulated PEX/PE-RT plastic pipe production line

Brand Name : HUASHIDA

Certification : ISO

Place of Origin : Qingdao, China

MOQ : 1 set

Price : $210000-$420000

Payment Terms : T/T

Supply Ability : 10 sets/year

Delivery Time : 45-60 days

Contact Now

A pre-insulated plastic pipe production line is a specialized production line used to manufacture insulated plastic pipes, commonly used in district heating, hot water supply, and industrial applications. These pipes typically consist of an inner plastic pipe (often PEX, PP-R), an insulating layer (usually polyurethane foam or another thermal insulator), and an outer protective casing (often HDPE or another durable plastic).

Pre-insulated PEX/PE-RT plastic pipe production line


Component Description Key Sub-Parts
Inner Pipe Extrusion Line Produces the inner plastic pipe (PEX, PP-R, PB, etc.). - Extruder
- Die head
- Vacuum calibration
- Cooling tank
- Haul-off unit

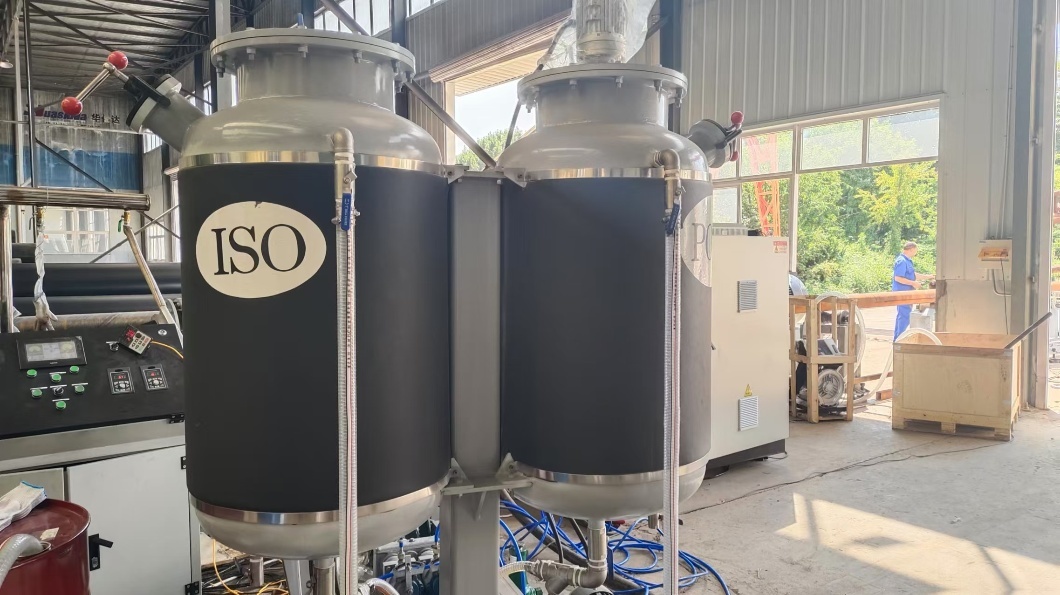

Foam Insulation System Applies polyurethane (PUR) foam insulation around the inner pipe for thermal efficiency. - Foam pouring station/spray system
- Density & thickness control system

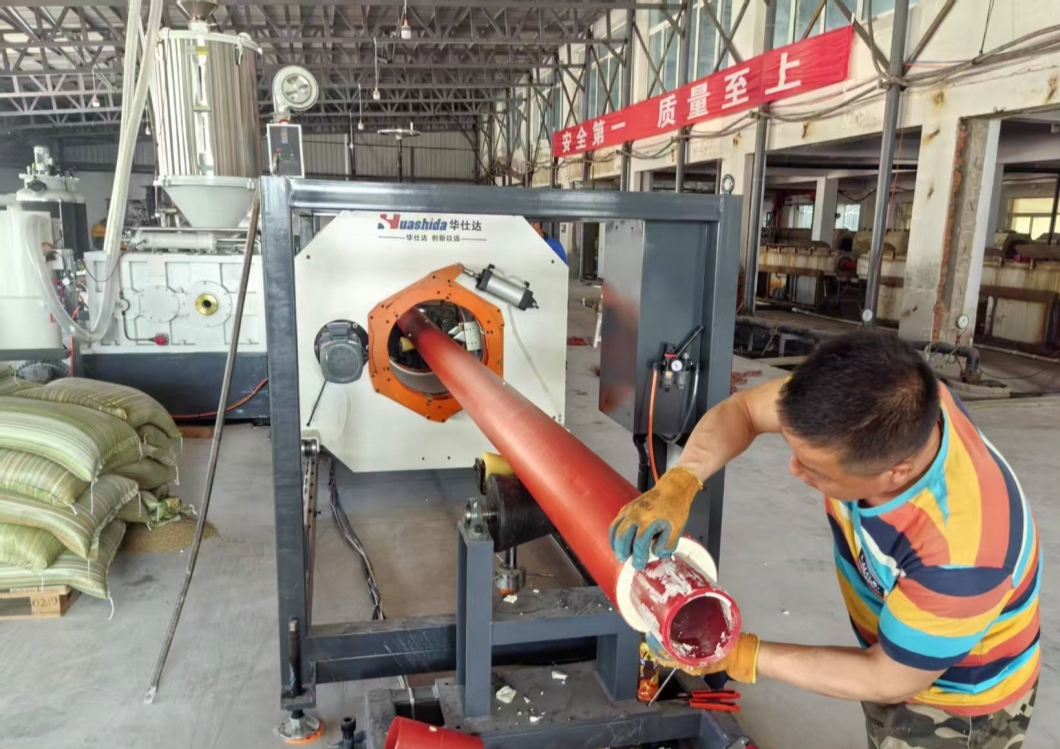

Outer Jacket Extrusion Line Extrudes the outer protective layer (typically HDPE) over the foam insulation. - Extruder
- Crosshead die
- Cooling system
- Haul-off unit
Corrugation/Smooth Layer Option Some machines allow corrugated outer layers for flexibility or smooth layers for rigid applications. - Corrugator module (if applicable)
Cutting & Stacking System Cuts finished pipes to required lengths and stacks them for packaging. - Automated saw/cutter
- Conveyor system
- Stacking robot/mechanism


Pre-insulated PEX/PE-RT plastic pipe production line


Pre-insulated PEX/PE-RT plastic pipe production linePre-insulated PEX/PE-RT plastic pipe production linePre-insulated PEX/PE-RT plastic pipe production line

Pre-insulated PEX/PE-RT plastic pipe production line


Pre-insulated PEX/PE-RT plastic pipe production line Manufactures

Pre-insulated PEX/PE-RT plastic pipe production line Images
