3PE Pipe Three Layer PE Fbe Coating Machine Anticorrosion Blasting Production Line
INTRODUCTION
3PE anti-corrosion coating production line, is three PE anti-corrosion structure of anti-corrosion pipeline production line, diameter range φ60 ~ φ1420, wall thickness range of 2.5-18mm, the use of three anti-corrosion. Namely, a layer of epoxy powder (FBE> 100µm), the second layer of adhesive (ad) 170 ~ 250µm, the third layer of polyethylene (PE) 2.5 ~ 3.7mm
Overall dimension: 20 m X 15 m
Total water consumption: 30 cubic meters
Total power consumption: 450 kilowatts
Total gas consumption: 6 cubic meters/min.
Temperature condition: the temperature inside the workshop is higher than 5 degrees.
Main Equipment List
| No. | Description | Qty. | |
| 1 | Coating transmit system | 1set | |
| 2 | Intermediate frequency heating system | 1set | |
| 3 | Epoxy spraying system | 1set | |
| 4 | Automatic feeding dryer | 2sets | |
| 5 | single screw high efficiency extruder SJ-65/30 | 1set | |
| 6 | SJ-120/30 extruder | 1set | |
| 7 | Hot melt adhesive extrusion die head | 1set | |
| 8 | PE sheet extrusion die head | 1set | |
| 9 | Hot melt adhesive/PE sheet press device | 1set | |
| 10 | Stainless steel spray powder chamber | 1set | |
| 11 | Cooling water spray system | 1set | |
| Platform system |
| No. | Description | Qty. | |
| 1 | Steel pipe up load platform | 1set | |
| 2 | Derusting transition platform | 1set | |
| 3 | Finished pipe storage system | 1set | |
| 4 | Hydraulic system | 3sets | |
| Grooving system |
| No. | Description | Qty. | |
| 1 | PE grooving device | 2sets | |
| 2 | Hydraulic elevating pipe turner | 2sets | |
| 3 | Operating cabinet | 1set | |
Question & Answer:
Q1. What is the range of pipe diameter the equipment can produce?
A: Diameter of steel Pipe: 48-219mm,219-1220mm,800-1600mm,1000-2400mm
Q2. What is the sand blasting grade?
A:SA2.5
Q3. What is your anti-corrosion coating standard?
A: It can meet SY/T0413-2002 ,GB/T23257-2009, German DIN 30670 , DIN 30678 and coating specification requirements from American Corrosion Association, and DNV . The product pipe fully complies with SY/T0315-2005 ,CNPC38-2002 "Technical specifications for double-layer fusion-bonded epoxy powder coating on buried steel pipe and Canada, American Corrosion Association standards.
Q4. What is Delivery Time?
A: 2-3monthes after deposit.
Q5. Production output
A: It is different output capability as different pipe diameter, the Max. is 3 to 8 km/day, and annual processing capacity is 2 million square meters (Φ508 mm).
Q6. Coating thickness:
A: 80~800um
Product Tags:
|
|

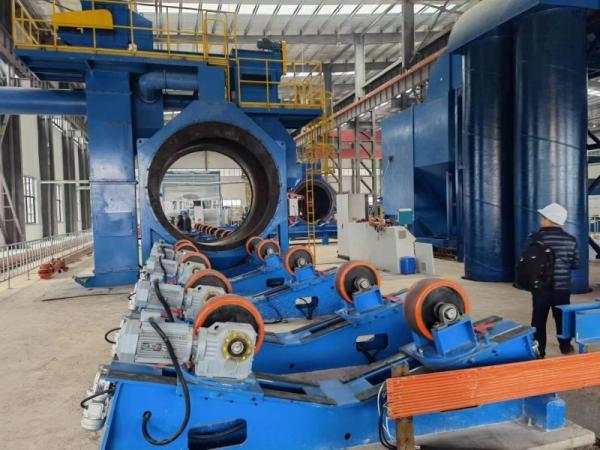

3PE Pipe Three Layer PE Fbe Coating Machine Anticorrosion Blasting Production Line Images
|
